DSF 2500

2 500 L
3 500 L/h
1 010 kg

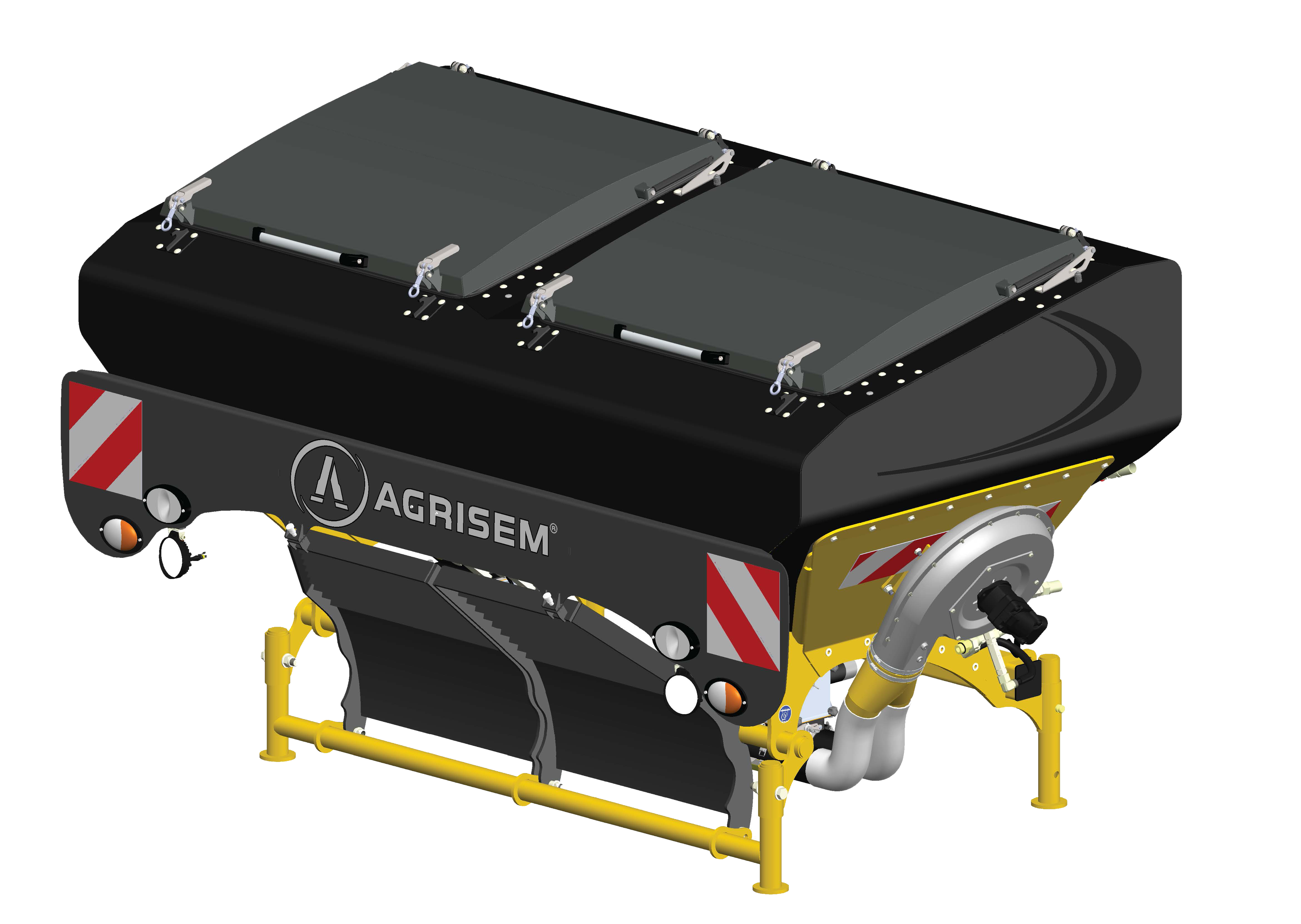

DSF 2500 is an ISOBUS compatible hopper with a capacity of 2 500 liters.

It is compartmentalized to allow fertilizer application during seeding. It is equipped with 2 pressure dosing units with interchangeable rollers.

The double compartment hopper, a solution for every need. The DSF 2500 front hopper can be equipped with an optional partitioning system with an independent electric drive for each dosing unit.

This makes it possible to distribute two products with completely different doses, grain sizes and densities.

The entire hopper can be devoted to the distribution of fertilizer at a large volume such as fertilization on the seed line with a precision planter or a strip-till.

The 2 compartments can be used to distribute 2 different types of fertilizer for precise management of fertilization according to the different elements (N-P-K)

The user can use his hopper to carry out sowing and localized fertilization in a single pass.

The entire hopper can be used for sowing in the conventional way to optimize the tank capacity and increase the work rate with greater autonomy.

The 2 metering units can also be used for the sowing of very different associated crops without having to mix them and thus optimize the precision, the spline settings and the soil settings.

THE IMPORTANCE OF LOCALIZED FERTILIZATION

  • Optimization of the fertilizer applied by limiting the risks of evaporation or burning of the plant.
  • Optimal availability for the plant with the fertilizer solubilized in the soil at the roots’ disposal even in dry conditions.
  • Possibility to fertilize only near the plant to ensure a better domination against weeds.
  • This phenomenon is even more pronounced in Conservation Agriculture where the organic matter of the cover crop can create a nitrogen hunger on the surface and in the row spacing which will penalize weed emergence.
  • Better plant start-up, increased number of ears and improved yield.
  • Possible reduction in the amount of fertilizer applied due to better fertilizer consumption.
  • Saves time by reducing the number of passes.
  • Reduced risk of air pollution (by evaporation) and water pollution in case of runoff.

A DESIGN CONCEIVED FOR EVERYDAY USE

The design of the hopper has been specially studied to offer the best possible visibility thanks to the plunging shape towards the front.

The DSF's size is also the most compact on the market while offering a large capacity for more autonomy. The user can also choose the hose routing he prefers, on the right side of the tractor or between the wheels. When working, the air pressure and hopper level indicators are continuously visible from the operator's station.

The DSF's are also equipped with reflective panels, low beam, position lights and flashing lights to ensure safe transportation. LED work lights are also available as well as an analog camera.

The use of the front hopper ensures an optimal balance of the tractor, without having to resort to a large ballast at the front of the tractor. To improve the weight distribution, the DSF 2500 can be equipped with an optional directional front pack with 4 wheels Ø840x300mm. If necessary, an additional weight kit (8x35kg) can be added.

Equipped with 2 specific dosing units with interchangeable rollers allowing to manage independently two products with different doses. The products can be applied : - Either in a differentiated way in each of the transfer pipes transfer pipes for the sowing of 2 associated crops at a different Either differentiated in each of the transfer pipes for the sowing of 2 associated crops at a different depth or in alternating rows. - Or grouped together for seeding and and localized fertilization. Translated with www.DeepL.com/Translator (free version)

Frontal ramp kit

THE SOLUTION TO INCREASE THE POSSIBILITIES

  • Easy to attach with no hoses to connect to the tractor
  • No equipment to add on the rear implement
  • Can be used with different implements
  • Excellent visibility on the seedbed
  • No risk of clogging by soil projections
  • Optimal flow by reducing the length of the hoses
  • Hoses can be wired with double fertilizer/seed splitters

ELECTRONIC MANAGEMENT OF ISOBUS COMPATIBLE DOSING UNITS

  • Powerful DPAE flow control
  • ISOBUS connection
  • Seed rate control
  • Automated calibration test
  • Tramline management
  • Forward speed measured by GPS receiver (or radar in option)
  • Early start
  • System control
  • Management of 2 types of products at the same time

THE IDEAL PARTNER FOR ALL BURIAL SOLUTIONS

Our range of front hoppers is adaptable with all AGRISEM seeding solutions. This allows a year-round use and a high level of profitability.

Broadcast seeding with splitter boom
Disc-o-Sem overlay seeding
TCS seeding with Vibrosem tines
Direct seeding with tines Tri-o-sem
Traditional sowing with Combisem PMA
Cipan seeding with splitter boom on stubble cultivator
Localized fertilization / cover crop seeding with Stripcat
Fertilization at seeding with a single-seed drill
Localized fertilization

2 500 L
Hopper capacity (L) 2 500
Number of outings 2 x 100 mm
Weight (kg) 1 010
Maximum flow rate (L/h) 3 500
Distribution heads 2 x 16 or 24 or 32 or 40 or 48 outputs
