Vibromulch trailed 10/12 m

60 cm
5 to 15 cm
10 to 12 m
300 to 480 ch

The Vibromulch is a stubble -breaker cultivator specializing in surface soil cultivation, whose technical characteristics give it great versatility for many works from 5 to 15cm deep.

Vibromulch-traîné-10-12-m - dessin BE

A versatile tool

With the characteristics of the tines with which it is equipped, their ventilated arrangement on the frame and its equipment, this makes it efficiently for the most varied works such as:

  • Scalping and / or false / sowing by the mechanical destruction of weeds from 2 to 12cm
  • Shallow stubble cultivation with the distribution and management of crop residues.
  • Opening for aeration and heating of the soil for the preparation of spring crops.
  • Leveling and refinement for the preparation of a seedbed with optimal conditions for seed germination.
  • Sowing in TCS of CIPAN or crops with specific equipment.

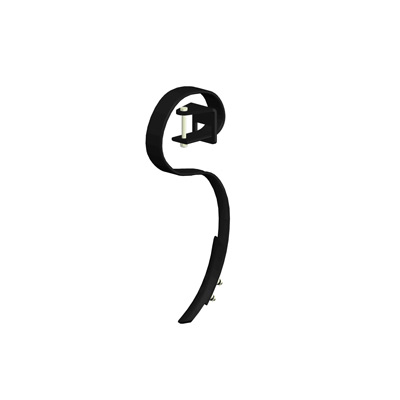

The vibrating tines 70x12

  • Flexible vibrating tine suitable for intensive surface tillage
  • Curved profile to ensure significant mixing of residues
  • Vibrating effect to amplify the crumbling
  • Ensures excellent leveling
  • Suitable for second stubble cultivation and seedbed preparation

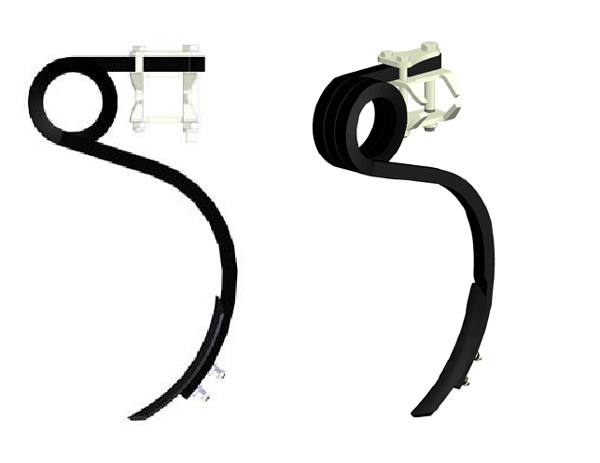

Exclusive AGRISEM tines with 3D safety

  • Safety tines AGRISEM 3D with shock spring 30x30 mm
  • Exclusive profile ensuring maximum travel for difficult conditions and in the presence of stones
  • Percussion / vibration effect created by the "pigtail" spring which improves the power of penetration in hard ground and crumbling
  • Curved shape for intensive mixing of residues
  • Efficient frame clamping system
  • Suitable for first stubble cultivation and resumption of plowing

PROGRESSIVE SPACING

Vibromulch 10 and 12m trailed is equiped with 5 rows of tines mounted on 80x80mm beans offering 60 cm clearance under the frame. The spacing of the rows is progressive and allows a better bean on the last rows where the flow of soil and mixed residues is the most consistent.

THE STUBBLE BREAKING FAST AND EFFECTIVE

Vibromulch, allows the realization of a quality false sowing, can be one of the way to reducing inputs in weed management. Reducing mechanization costs and profitability the main advantages:

  • Efficient stubble cultivation, at high forward speeds (up to 12Km / h) which allows high work rates.
  • A limited need for power and fuel, which make it an economical machine.
  • The simplicity of concept which limits maintenance to the replacement of wearing parts.
  • The lower investment than most stubble cultivators.
  • An additional role of sowing when combined with a hopper.

LEVEL OF WORK

The Vibromulch mounted can accommodate a wide range of rollers.

There is a harrow kit comb in front of the roller and/or  a harrow kit behind the roller to improve leveling and prevent weed transplanting.

Agrisem-Profil-V-SEM

V-Sem roller Ø600

T-Sem roller Ø620

U-SEM roller Ø580

Double U-Sem Ø580

Transport wheels RADIAL 710/45R22.5

2 points toggling hitchand hydraulic drawbar

2 points toggling hitchand mecanical drawbar

Coupling ball K80 type

Tines with 3D security 30x30 mm

Sweep shares at rear of the machine or on all of the tines

Levelling harrow after roller

Cross-Board with hudraulic adjustment

10,00 m 12,00 m
Transport width (m) 3,00 3,00
Power mini-maxi (hp) 300 - 400 360 - 480
Number of tines 60 72
