ProductsLocalised fertilization

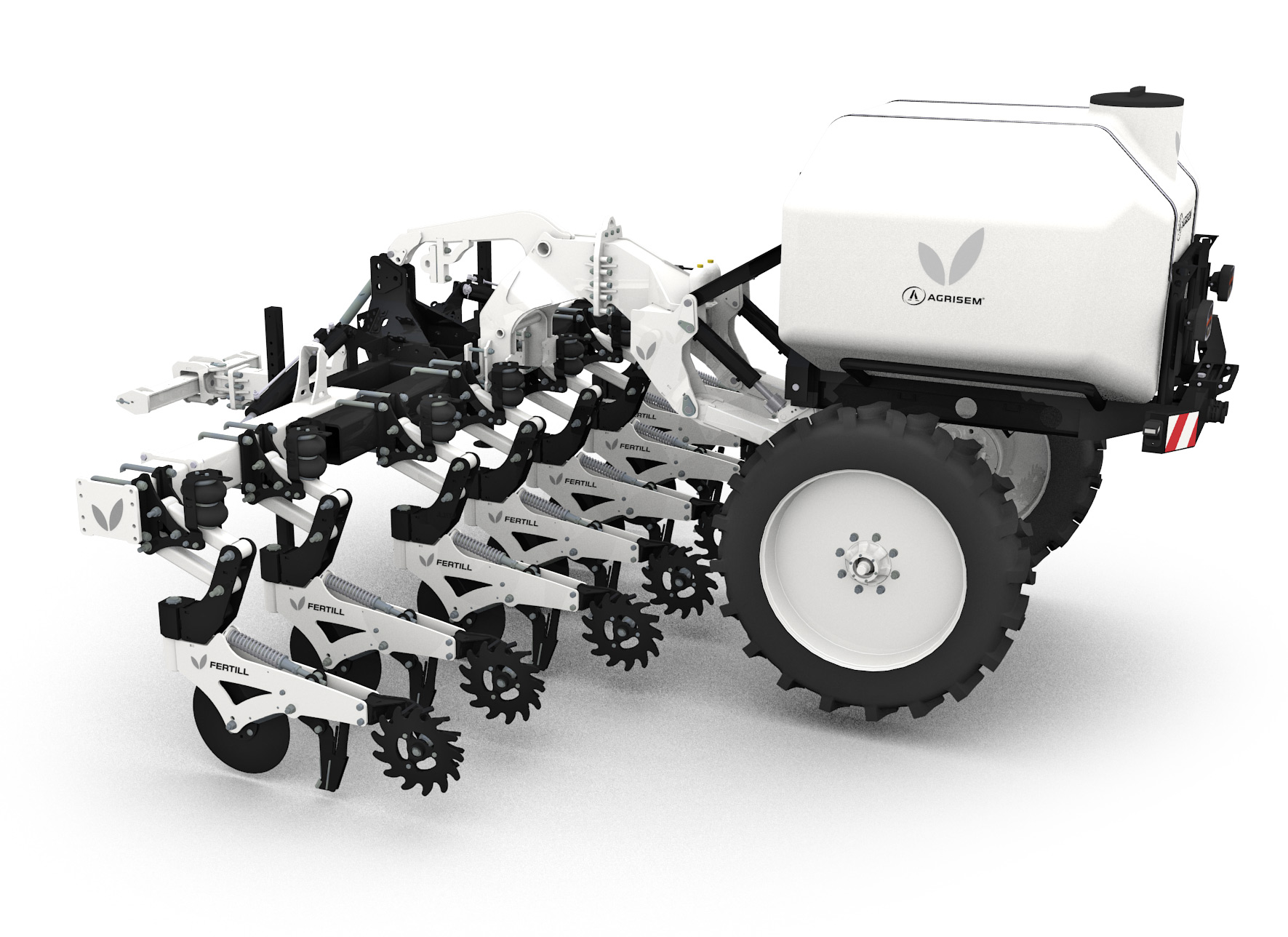

FERTILL

Largeur de travail
From 3 to 12 m
From 3 to 12 rows

The TCS FERTILL specialist enables effective soil fertilization through precise placement. Fertilizing elements are placed near the active zone (from a microbiological perspective), allowing roots to access them.

Fertilisation des sols - Fertill
LEAFLET
PART SERVICE

WHY LOCALISE ?

  1. It reduces or even eliminates the risk of ammonia volatilisation.
  2. It reduces the risk of losses by runoff and erosion.
  3. It reduces the emanation of odours.
  4. It breaks the preferential flow channels (retreat slots).
  5. Avoid burning vegetation

1 UNIT, 4 POSSIBILITIES

The frame as well as the inter-rows are modular.
In order to adapt to the different widths and inter-rows of precision planters, we have studied 4 fertilisation configurations, which can be upgraded.

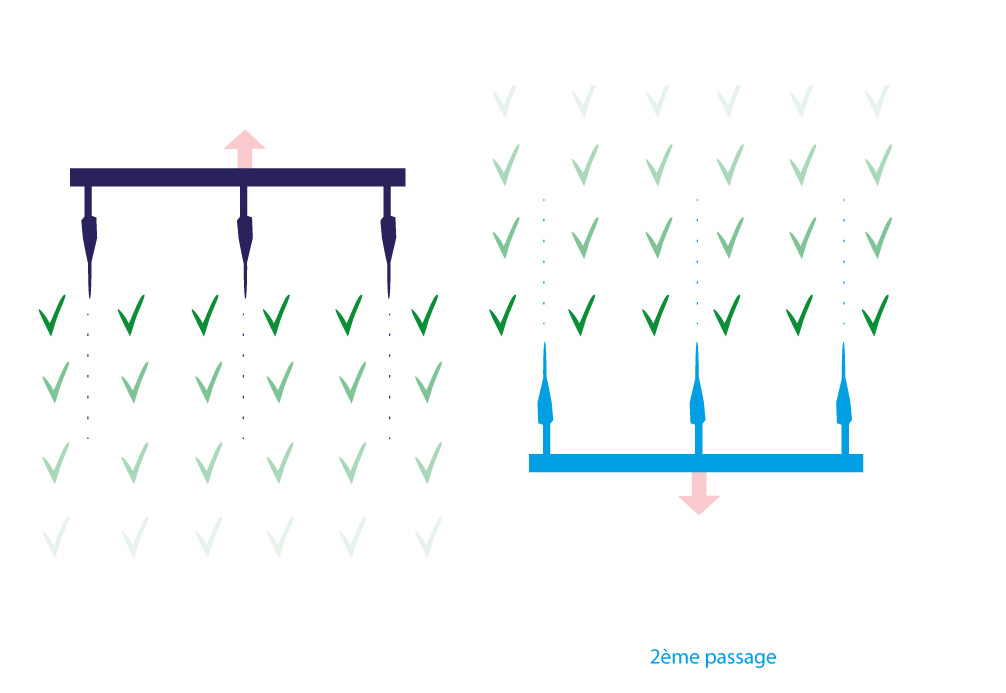

POSSIBILITY N°1

A simple unit, 1 inter-row on 2.
Fertill

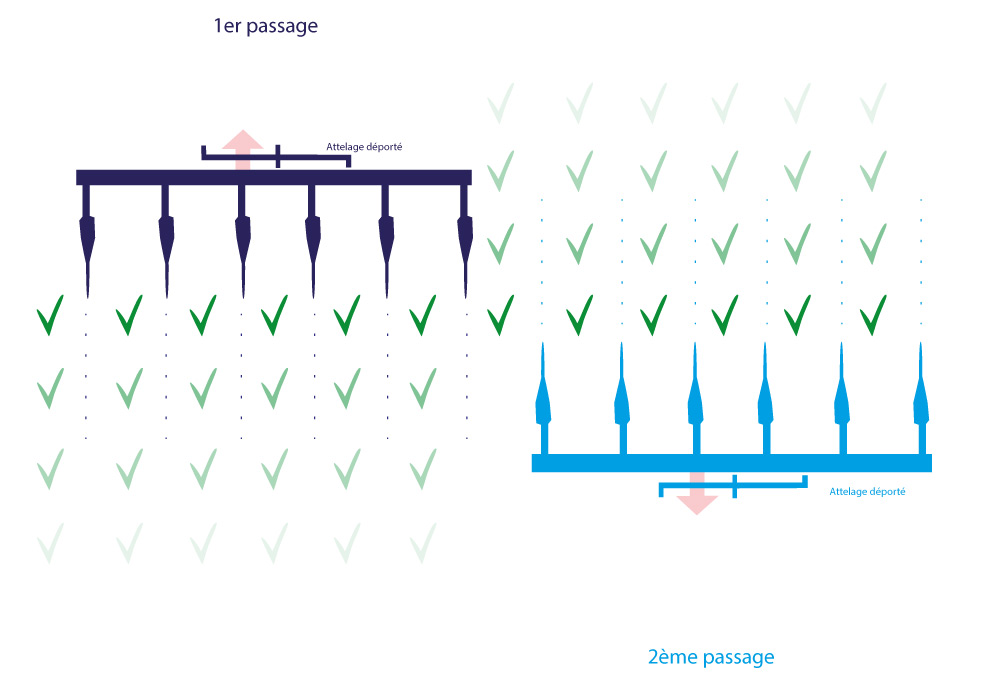

POSSIBILITY N°2

Twin unit, 1 inter-row on 2.
Fertill

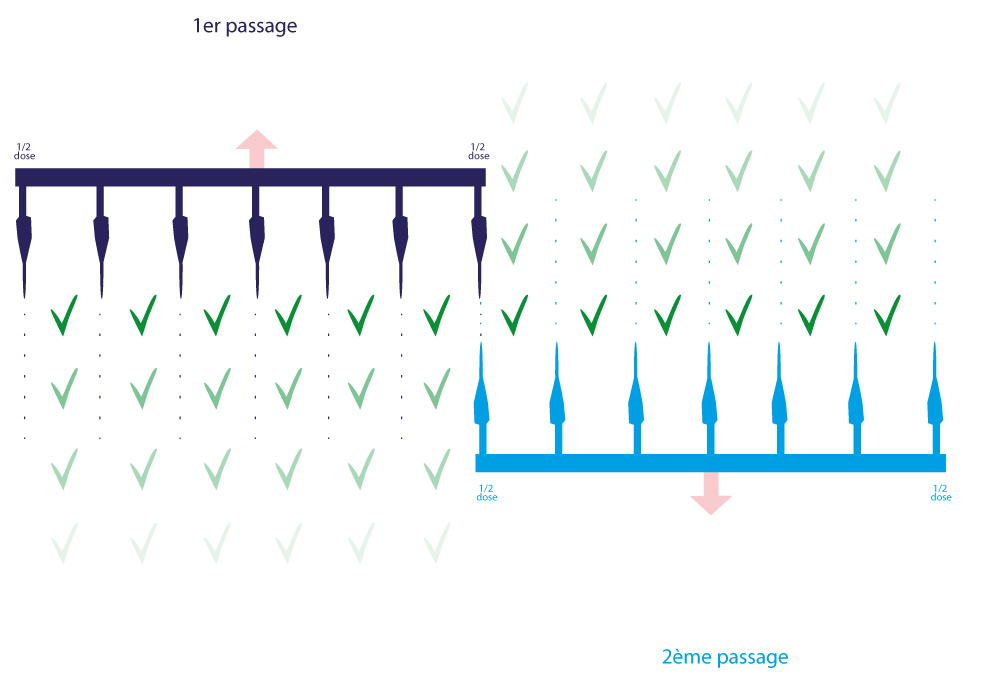

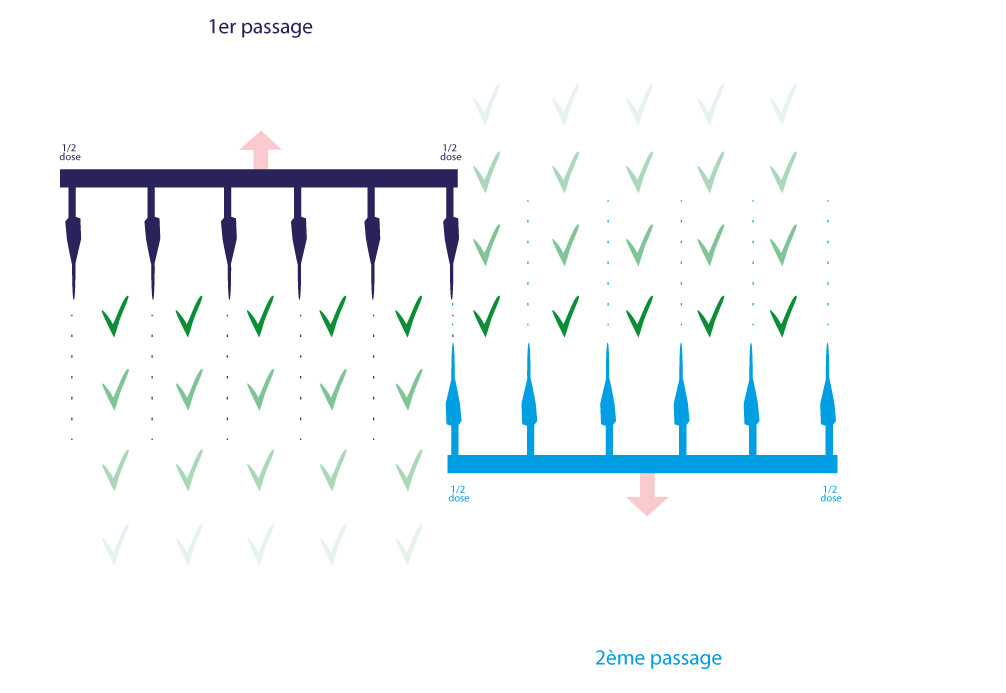

POSSIBILITY N°3

A simple unit, every inter-row.
Fertill









POSSIBILITY N°4

Twin unit, every inter-row.
Fertill

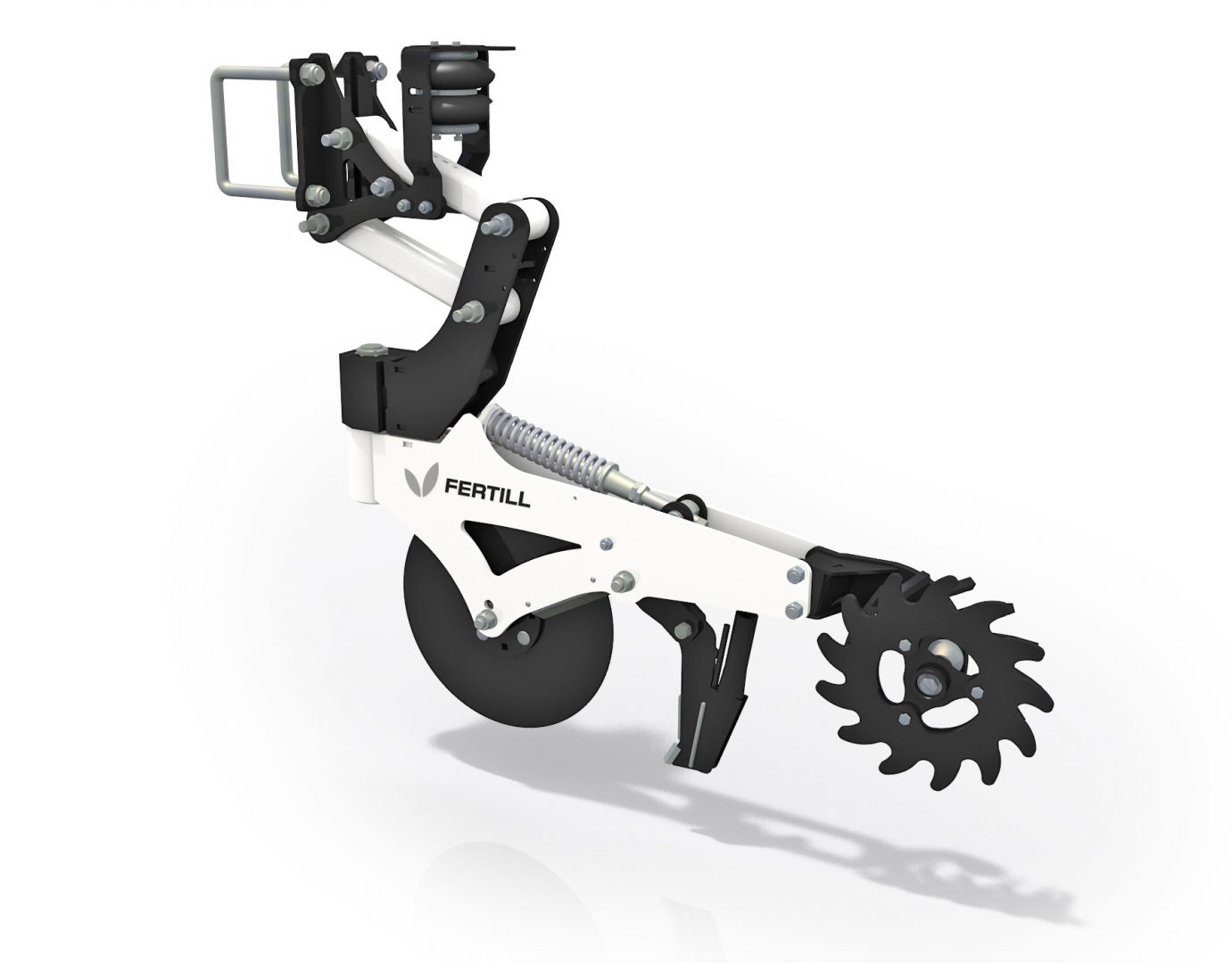

THE UNIT

This disc injector mounted on a parallelogram damped on air unit is guided by an oscillating arm. This allows to work at high speeds even
in the presence of residue. Single or twin row elements make it possible to adapt perfectly to each spacing.

  • Regulation LiquidXConnect

– 2 models, 15 or 75 l/mn (combinable)
– Fittings, couplings, direct battery socket, high/low position sensor
– GPS and on/off switch
– Software for Android
– 1 pump: tablet 8”, with cabin mount bracket and a carrying bag
– 2 pumps: tablet 10”, with cabin mount bracket, a carrying bag and an electronic connexion case

Fertilisation des sols - Soil fertilisation Tablette
  • Tank

Available capacity 700, 1100 (rinse tank 125l), 1200 (rinse tank 135l), 1500 (rinse tank 150l), 1850 two product (750+1050l, rinse tank 125l), 2200L (rinse tank 250l)

Delivered with hand-washing tank, homologated NF EN ISO 4254-6

Fertilisation des sols - Soil fertilisation Cuve
  • Liquid fertilisation kit

Wilger ball flow indicators Included in the kit:

– filter
– pressure gauge
– manifold
– one set of nozzle
– 8m hose for connexion
– additional connector hose under the tractor

Fertilisation des sols - Soil fertilisation Tuyaux connection
  • Solid fertilisation kit

– manifold Ø 100
– 1 hose per unit
– air release
– assembly on Fertill

Fertilisation des sols - Soil fertilisation Tête de distribution

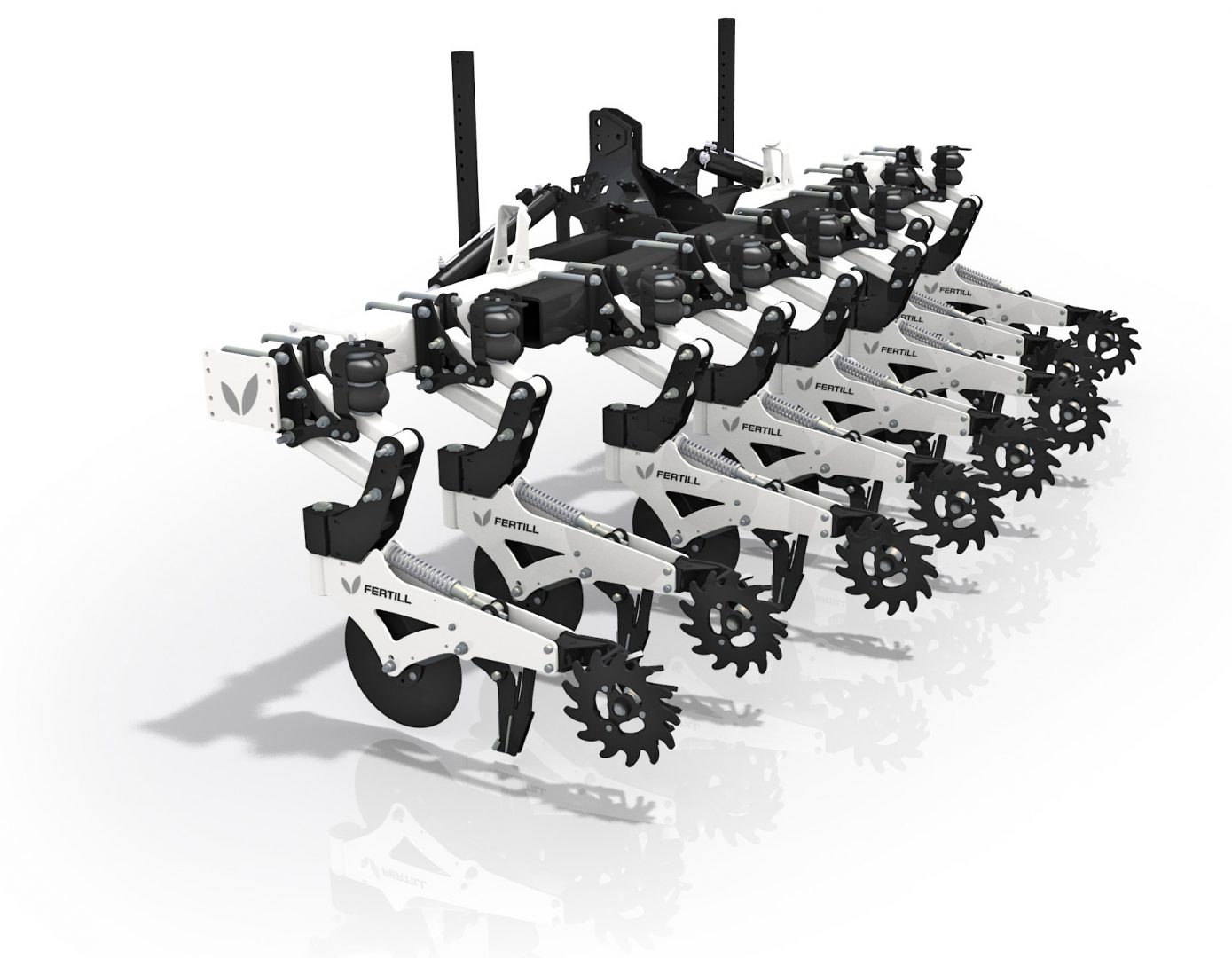

  • Mounted, telescopic, foldable, trailed
    From 3 to 12m, (3m on road) & stand for liquid tank
Fertilisation des sols - Soil fertilisation Châssis
